环形光栅传感器
|
环形光栅传感器
|
ORSD系列 | |
| · 高分辨率 · 响应时间短 · 静态/动态切换 · 脉冲展宽可调 · 检测金属和非金属零件 · 信号处理驱动一体化 |
 |
|
| · High resolution · Short response time · Static / Dynamic switchable · Pulse stretching adjustable · Detection of metallic and non-metallic parts · Integrated evaluation electronics |
 |
 |
 |
|||
|
|
|
|
选型表(PRODUCTS LIST)

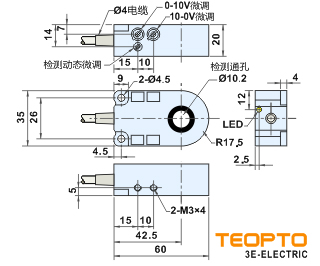

1、环形直径/Ring-diameter Ø 15 mm, 分辨率/Resolution Ø 2,0 mm
|
|
 |
订货型号(TYP) |
| ORSD15NP |
|
|
 |
订货型号(TYP) |
| ORSD15NPC5 |
2、环形直径/Ring-diameter Ø 25,6 mm, 分辨率/Resolution Ø 3 mm
|
|
 |
订货型号(TYP) |
| ORSD25NP |
|
|
 |
订货型号(TYP) |
| ORSD25NPC5 |
3、环形直径/Ring-diameter Ø 36 mm, 分辨率/Resolution Ø 4,0 mm
|
|
 |
订货型号(TYP) |
| ORSD36NP |
|
|
 |
订货型号(TYP) |
| ORSD36NPC5 |
4、环形直径/Ring-diameter Ø 75 mm, 分辨率/Resolution Ø 7,0 mm
|
|
 |
订货型号(TYP) |
| ORSD75NP |
|
技术数据 (典型值)Technical data (typ.)
|
+20°C, 24V DC | |
|---|---|---|
| 供电电压 Service voltage | 10 ... 30 V DC | |
| 输出 Output | pnp or npn, 200 mA, NO/NC;/ switchable | |
| 灵敏度调节 Sensitivity adjustment | 电位器/Potentiometer | |
| 工作原理 Operating principle | 静态/动态 可切换 ;/Static / Dynamic switchable | |
| 最大额定输出电流 Maximum rating | 200 mA | |
| 静态电流 Internal power consumption | < 30 mA | |
| 电压降 Voltage drop | < 2,0 V | |
| 脉冲展宽 Pulse stretching | 调整约1 ... 150ms / adjustable approx. 1 ... 150ms | |
| 响应时间 Speed of parts | 0,1ms | |
| 环境温度 Ambient temperature | -25 ... +70 °C | |
| 绝缘电压Insulation voltage endurance | 500V | |
| 电气保护 Protection class | 过载、短路、极性保护/Protection Operation with class 2 supply voltage | |
| 防护等级 Protection class | IP67 | |
| 抗环境光 Ambient light immunity | 5,000 Lx | |
| 外壳材料 Housing material | 聚酰胺 PA | |
| 连接电缆(参考选型数据表) | Connecting cables Data-sheet | 订货编号/TYP |
|---|---|---|
| M12 插件 |
Connector M12/C5
|
|
