环形传感器 B系列(2)
 |
电感式环形传感器 B... 系列环形电感式接近开关，基于静态或动态工作原理孔径：3, 6, 10, 15, 20, 25, 30, 35, 44, 50, 75, 100mm (如有特殊内孔需求，可联系定做！) 壳体颜色可选：B0... 兰色；B6... 橙色；B8... 灰色；电缆输出或插件连接器输出 供电电压：10-30VDC 或 NAMUR 8.2VDC Induktive Ring sensoren Static / Dynamic Operating Principle Hole：3, 6, 10, 15, 22, 30, 44, 63, 100 mm Diameter. Cable Output Or Connector Output D.C. 10 TO 30 Vdc Supply Version Or NAMUR 8.2 Vdc SUPPLY VERSION |
| 孔径：Φ3mm | 孔径：Φ6mm | 孔径：Φ8mm | 孔径：Φ10mm | 孔径：Φ12mm |
| 孔径：Φ15mm | 孔径：Φ20mm | 孔径：Φ22mm | 孔径：Φ25mm | 孔径：Φ30mm |
| 孔径：Φ35mm | 孔径：Φ44mm | 孔径：Φ50mm | 孔径：Φ75mm | 孔径：Φ100mm |
| 技术指标 | 分辨率介绍 | 静态与动态说明 | 电气接线图 | 使用示意 |
| 应用案例 | 连接器配件 | 3D CAD数据 |
页面内容呈现有限，只列部分产品规格型号。如有特殊内孔需求，可联系定做！
1、孔径为3mm的选型列表(Products List of Diameter Hole 3mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN3NC7 | ||
| PNP | B01AN3PC7 | ||
| NPN+PNP | B01AN3XC7 | ||
| NPN/PNP | B01AN3QC7 | ||
| NAMUR | B01AN3TC7 | ||
| 动态Dynamic | |||
| NPN | B02AN3NC7 | ||
| PNP | B02AN3PC7 | ||
| NPN+PNP | B02AN3XC7 | ||
| NPN/PNP | B02AN3QC7 | ||
 |
 |
静态Static | |
| NPN | B01AN3NV7 | ||
| PNP | B01AN3PV7 | ||
| NPN+PNP | B01AN3XV7 | ||
| NPN/PNP | B01AN3QV7 | ||
| NAMUR | B01AN3TV7 | ||
| 动态Dynamic | |||
| NPN | B02AN3NV7 | ||
| PNP | B02AN3PV7 | ||
| NPN+PNP | B02AN3XV7 | ||
| NPN/PNP | B02AN3QV7 | ||
3、孔径为10mm的选型列表(Products List of Diameter Hole 10mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN10NC7 | ||
| PNP | B01AN10PC7 | ||
| NPN+PNP | B01AN10XC7 | ||
| NPN/PNP | B01AN10QC7 | ||
| NAMUR | B01AN10TC7 | ||
| 动态Dynamic | |||
| NPN | B02AN10NC7 | ||
| PNP | B02AN10PC7 | ||
| NPN+PNP | B02AN10XC7 | ||
| NPN/PNP | B02AN10QC7 | ||
 |
 |
静态Static | |
| NPN | B01AN10NV7 | ||
| PNP | B01AN10PV7 | ||
| NPN+PNP | B01AN10XV7 | ||
| NPN/PNP | B01AN10QV7 | ||
| NAMUR | B01AN10TV7 | ||
| 动态Dynamic | |||
| NPN | B02AN10NV7 | ||
| PNP | B02AN10PV7 | ||
| NPN+PNP | B02AN10XV7 | ||
| NPN/PNP | B02AN10QV7 | ||
4、孔径为15mm的选型列表(Products List of Diameter Hole 15mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN15NC7 | ||
| PNP | B01AN15PC7 | ||
| NPN+PNP | B01AN15XC7 | ||
| NPN/PNP | B01AN15QC7 | ||
| NAMUR | B01AN15TC7 | ||
| 动态Dynamic | |||
| NPN | B02AN15NC7 | ||
| PNP | B02AN15PC7 | ||
| NPN+PNP | B02AN15XC7 | ||
| NPN/PNP | B02AN15QC7 | ||
 |
 |
静态Static | |
| NPN | B01AN15NV7 | ||
| PNP | B01AN15PV7 | ||
| NPN+PNP | B01AN15XV7 | ||
| NPN/PNP | B01AN15QV7 | ||
| NAMUR | B01AN15TV7 | ||
| 动态Dynamic | |||
| NPN | B02AN15NV7 | ||
| PNP | B02AN15PV7 | ||
| NPN+PNP | B02AN15XV7 | ||
| NPN/PNP | B02AN15QV7 | ||
5、孔径为20mm的选型列表(Products List of Diameter Hole 20mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN20NC7 | ||
| PNP | B01AN20PC7 | ||
| NPN+PNP | B01AN20XC7 | ||
| NPN/PNP | B01AN20QC7 | ||
| NAMUR | B01AN20TC7 | ||
| 动态Dynamic | |||
| NPN | B02AN20NC7 | ||
| PNP | B02AN20PC7 | ||
| NPN+PNP | B02AN20XC7 | ||
| NPN/PNP | B02AN20QC7 | ||
 |
 |
静态Static | |
| NPN | B01AN20NV7 | ||
| PNP | B01AN20PV7 | ||
| NPN+PNP | B01AN20XV7 | ||
| NPN/PNP | B01AN20QV7 | ||
| NAMUR | B01AN20TV7 | ||
| 动态Dynamic | |||
| NPN | B02AN20NV7 | ||
| PNP | B02AN20PV7 | ||
| NPN+PNP | B02AN20XV7 | ||
| NPN/PNP | B02AN20QV7 | ||
6、孔径为25mm的选型列表(Products List of Diameter Hole 25mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN25NC7 | ||
| PNP | B01AN25PC7 | ||
| NPN+PNP | B01AN25XC7 | ||
| NPN/PNP | B01AN25QC7 | ||
| NAMUR | B01AN25TC7 | ||
| 动态Dynamic | |||
| NPN | B02AN25NC7 | ||
| PNP | B02AN25PC7 | ||
| NPN+PNP | B02AN25XC7 | ||
| NPN/PNP | B02AN25QC7 | ||
 |
 |
静态Static | |
| NPN | B01AN25NV7 | ||
| PNP | B01AN25PV7 | ||
| NPN+PNP | B01AN25XV7 | ||
| NPN/PNP | B01AN25QV7 | ||
| NAMUR | B01AN25TV7 | ||
| 动态Dynamic | |||
| NPN | B02AN25NV7 | ||
| PNP | B02AN25PV7 | ||
| NPN+PNP | B02AN25XV7 | ||
| NPN/PNP | B02AN25QV7 | ||
7、孔径为30mm的选型列表(Products List of Diameter Hole 30mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN30NC7 | ||
| PNP | B01AN30PC7 | ||
| NPN+PNP | B01AN30XC7 | ||
| NPN/PNP | B01AN30QC7 | ||
| 动态Dynamic | |||
| NPN | B02AN30NC7 | ||
| PNP | B02AN30PC7 | ||
| NPN+PNP | B02AN30XC7 | ||
| NPN/PNP | B02AN30QC7 | ||
 |
 |
静态Static | |
| NPN | B01AN30NV7 | ||
| PNP | B01AN30PV7 | ||
| NPN+PNP | B01AN30XV7 | ||
| NPN/PNP | B01AN30QV7 | ||
| 动态Dynamic | |||
| NPN | B02AN30NV7 | ||
| PNP | B02AN30PV7 | ||
| NPN+PNP | B02AN30XV7 | ||
| NPN/PNP | B02AN30QV7 | ||
8、孔径为35mm的选型列表(Products List of Diameter Hole 35mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN35NC7 | ||
| PNP | B01AN35PC7 | ||
| NPN+PNP | B01AN35XC7 | ||
| NPN/PNP | B01AN35QC7 | ||
| 动态Dynamic | |||
| NPN | B02AN35NC7 | ||
| PNP | B02AN35PC7 | ||
| NPN+PNP | B02AN35XC7 | ||
| NPN/PNP | B01AN35QC7 | ||
 |
 |
静态Static | |
| NPN | B01AN35NV7 | ||
| PNP | B01AN35PV7 | ||
| NPN+PNP | B01AN35XV7 | ||
| NPN/PNP | B01AN35QV7 | ||
| 动态Dynamic | |||
| NPN | B02AN35NV7 | ||
| PNP | B02AN35PV7 | ||
| NPN+PNP | B02AN35XV7 | ||
| NPN/PNP | B02AN35QV7 | ||
9、孔径为44mm的选型列表(Products List of Diameter Hole 44mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN44NC7 | ||
| PNP | B01AN44PC7 | ||
| NPN+PNP | B01AN44XC7 | ||
| NPN/PNP | B01AN44QC7 | ||
| 动态Dynamic | |||
| NPN | B02AN44NC7 | ||
| PNP | B02AN44PC7 | ||
| NPN+PNP | B02AN44XC7 | ||
| NPN/PNP | B02AN44QC7 | ||
 |
 |
静态Static | |
| NPN | B01AN44NV7 | ||
| PNP | B01AN44PV7 | ||
| NPN+PNP | B01AN44XV7 | ||
| NPN/PNP | B01AN44QV7 | ||
| 动态Dynamic | |||
| NPN | B02AN44NV7 | ||
| PNP | B02AN44PV7 | ||
| NPN+PNP | B02AN44XV7 | ||
| NPN/PNP | B02AN44QV7 | ||
10、孔径为50mm的选型列表(Products List of Diameter Hole 50mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN50NC7 | ||
| PNP | B01AN50PC7 | ||
| NPN+PNP | B01AN50XC7 | ||
| NPN/PNP | B01AN50QC7 | ||
| 动态Dynamic | |||
| NPN | B02AN50NC7 | ||
| PNP | B02AN50PC7 | ||
| NPN+PNP | B02AN50XC7 | ||
| NPN/PNP | B02AN50QC7 | ||
 |
 |
静态Static | |
| NPN | B01AN50NV7 | ||
| PNP | B01AN50PV7 | ||
| NPN+PNP | B01AN50XV7 | ||
| NPN/PNP | B01AN50QV7 | ||
| 动态Dynamic | |||
| NPN | B02AN50NV7 | ||
| PNP | B02AN50PV7 | ||
| NPN+PNP | B02AN50XV7 | ||
| NPN/PNP | B02AN50QV7 | ||
11、孔径为75mm的选型列表(Products List of Diameter Hole 75mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN75NC7 | ||
| PNP | B01AN75PC7 | ||
| NPN+PNP | B01AN75XC7 | ||
| NPN/PNP | B01AN75QC7 | ||
| 动态Dynamic | |||
| NPN | B02AN75NC7 | ||
| PNP | B02AN75PC7 | ||
| NPN+PNP | B02AN75XC7 | ||
| NPN/PNP | B02AN75QC7 | ||
12、孔径为100mm的选型列表(Products List of Diameter Hole 100mm)回顶部
 |
 |
静态Static | |
| NPN | B01AN100NC7 | ||
| PNP | B01AN100PC7 | ||
| NPN+PNP | B01AN100XC7 | ||
| NPN/PNP | B01AN100QC7 | ||
| 动态Dynamic | |||
| NPN | B02AN100NC7 | ||
| PNP | B02AN100PC7 | ||
| NPN+PNP | B02AN100XC7 | ||
| NPN/PNP | B02AN100QC7 | ||
技术指标，典型值(Technical Indicators)回顶部
| DC 3/4 Line | NAMUR | |
| 工作电压Power Voltage | 10 ... 30V DC | 8.2V DC |
| 输出Output | PNP or NPN, 200 mA, NO/NC; switchable | |
| 灵敏度调节Sensitivity adjustment | 电位器Potentiometer | |
| 工作原理Operating principle | 静态 或 动态Static or Dynamic | |
| 负载电流Maximum rating | 200 mA max. | |
| 静态电流Internal power consumption | ≤ 20 mA | |
| 电压降Voltage drop | ≤ 2V | |
| 脉冲展宽Pulse stretching | 1...150ms 可调adjustable approx. 1...150ms | |
| 响应时间Speed of parts | ≤ 0,2ms | |
| 环境温度Ambient temperature | -25 ... +70 °C | |
| 功能显示Function Display | 黄色灯YELLOW LED | |
| 零件速度Speed of parts | ≤ 30 m/s | |
| 防护等级Protection class | IP66 | |
| 电缆Cable | 3/4-wires，2m | 2-wires，2m |
| 插件连接器Connector | M12 (C5、C6) 插件连接器；M8 (V5、V6) 插件连接器 | |
标准检测物(Standardized Detectors)回顶部
| 环内径(mm) | Φ3 | Φ6 | Φ10 | Φ15 | Φ20 | Φ25 | Φ30 | Φ35 | Φ44 | Φ50 | Φ75 | Φ100 |
| 静态工作 | 0,5mm | 1mm | 1,2mm | 2mm | 2,5mm | 3mm | 3,5mm | 4,5mm | 5,5mm | 6mm | 8mm | 10mm |
| 动态工作 | 0,3mm | 0,5mm | 0,6mm | 0,8mm | 1mm | 1,2mm | 1,7mm | 2mm | 2,2mm | 2,5mm | 4mm | 5mm |
静态与动态使用说明(Static and dynamic usage instructions)回顶部
|
1、静态：主要用来检测物件输送过程中的“有”与“无”的存在或堵塞状态的检测。 2、动态：主要检测微小物件的通过检测，灵敏度较静态要高数倍，通常用来对微小物件的计数。即使管子上出现金属污垢，传感器仍可长时间保持很高的分辨率 。（但并不能作为检测物件的堵塞状态检测。） |

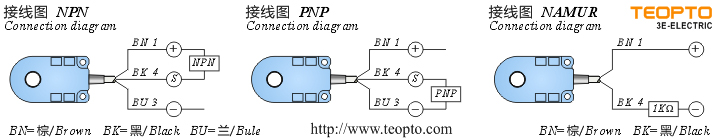

电气接线图(Electrical Wiring Diagram)回顶部
 |
 |
